Updated Tables of Intercept Test (November 30, 2018) (Updated December 11, 2018)

This post updates my tables of intercept test for the GMD, SM-3 and THAAD systems. This updates my post of April 22, 2018, adding two additional tests for the SM-3 Block IB and SM- Block IIA.   See that post for some background information on why I started to compile these tables.  This update also adds a brief description of the cause of each intercept failure. December 11 update adds one SM-3 Block IIA test.

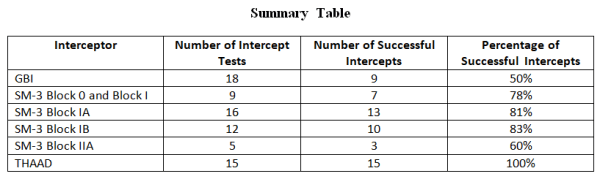

Dec11-2018-TestingSummaryChart

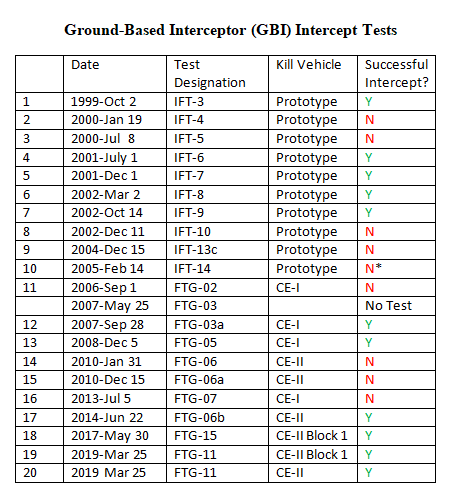

TestingTableGBI-November 2018

TestingGMDText-November 2018

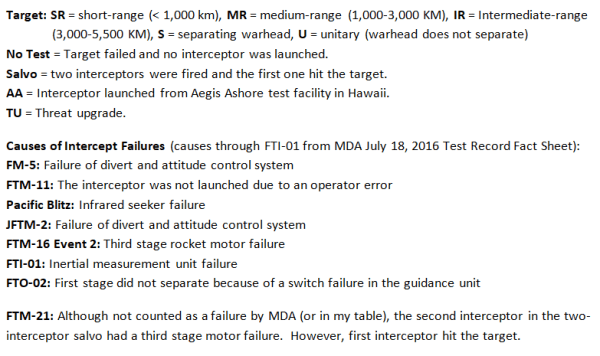

TestingBlockIB-November2018TestingBlockIB-PNG-November2018

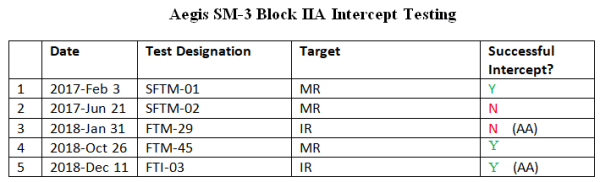

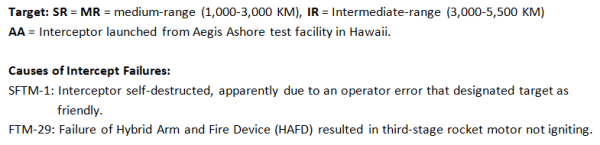

Dec11-2018-BlockIIA-TableTestingBlockIIA-PNG-November2018

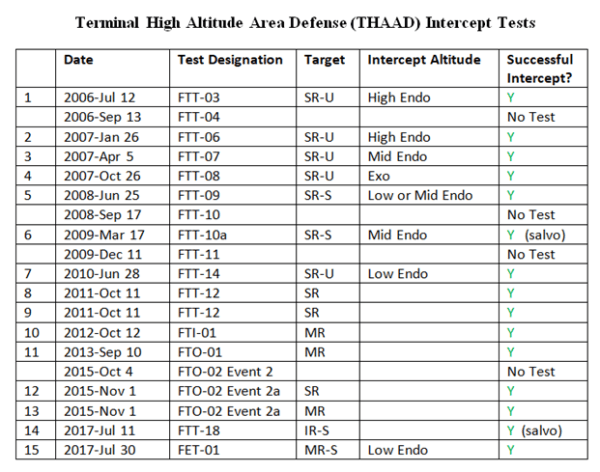

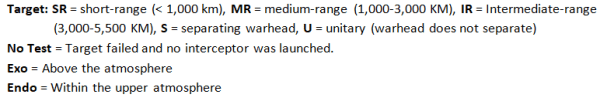

TestingTHAAD-PNGs-November2018TestingTHAADText-PNG-November2018
