Chronology of MDA’s Plans for Laser Boost-Phase Defense (August 26, 2016)

The Missile Defense Agency plans to produce “in the 2025 time frame” an airborne laser capable of destroying ballistic missiles in their boost phase.[1]  As a start in looking at this program, I first have constructed the following chronology of MDA’s plans for laser boost-phase defense.

My focus here is on the output power (and weight required to achieve that power) achieved and planned.  I’ll consider other issues such as the airborne platform, costs, how the lasers operate, etc. in future posts.

Laser1

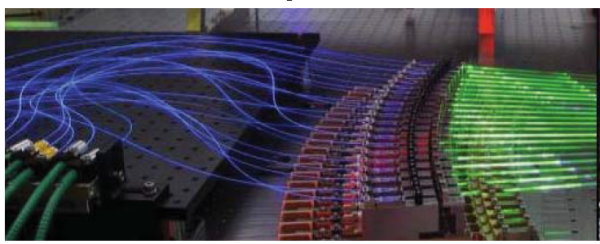

Figure 1. The beam combiner of a fiber combining laser (FCL).  It seems likely that this is the system described under “2013” below, as it appears to combine 21 fibers.  Image Source: Missile Defense Agency, “Fiscal Year (FY) 2017 Budget Estimates: Overview,” online at: https://www.mda.mil/global/documents/pdf/budgetfy17.pdf.

About 2011:  MDA began to invest in several electrically-driven laser technologies.  According to its FY 2012 budget documents, in FY 2011 the MDA planned to “Develop and experiment with diode-pumped gas lasers, fiber lasers, solid state and advanced high-power laser optics.”[2]  The two main lines of laser development that ultimately emerged from this were a Diode Pumped Alkali Laser System (DPALS) and a Fiber Combining Laser (FCL).  The DPALS research was based at Lawrence Livermore National Laboratory (LLNL) and the FCL research at the MIT Lincoln Laboratory, and both have also been supported by DARPA.

By this time, it had long been clear that the Airborne Laser (ABL) program, with its large, complex and chemically hazardous Chemical Oxygen Iodine Laser (COIL) on a Boeing 747 airplane, would never produce a viable operational system.  The ABL was finally completely cancelled in 2012, after at least $5.3 billion had been spent on it.[3]  In February 2010 tests, the ABL shot down three ballistic missiles (both liquid and solid fueled) with its mega-watt class laser, although only at ranges of “tens of kilometers.”[4]

2012: The MDA stated that in 2012, it “Demonstrated the architectural feasibility of the Diode Pumped Alkali Laser System (DPALS) and the combined fiber lasers for high power applications.”[5]  The FCL prototype at Lincoln Laboratory, which “exploits a novel technique for combining the output of individual fiber lasers,” achieved a power output of 2.5 kW.[6]  The LLNL DPALS demonstrated a threefold increase in power and a 50% increase in efficiency.[7]

2013:   The FCL, coherently combining 21 separate fiber amplifiers, reached an output power of 17.5 kW with near perfect beam quality.[8]  The MDA described this power as a “world record” for such a laser.  The MDA also demonstrated a power output of 1.5 kW from a single, combinable fiber amplifier.[9]  The DPALS at Livermore achieved a peak power of 3.9 kW (also described as a world record) and a laser run time of four minutes.[10]

2014: The FCL exceeded 34 kW.[11]  The DPALS reached 5 kW, and its hardware was subsequently redesigned and assembled “for the next step in power scaling.”[12]

2015: Lincoln Laboratory’s FCL, now combining 42 fibers, reached 44 kW with near perfect beam quality.[13]  This version of the FCL was described as “room sized” and with a weight-to-power ratio of 40 kg/kW.[14] [For points of comparison, the Airborne Laser’s Size Weight and Power (SWaP) was 55 kg/kW, Admiral Syring has stated that at least 5 kg/kW is needed to have any chance of workable boost-phase weapon, and MDA’s SWaP goal is 2 kg/kW.[15]]  MDA’s program also demonstrated a 2.5 kW combinable single fiber amplifier and achieved “excellent” beam quality with a 101 fiber low-power scalability demonstration.[16]  The DPALS at Livermore reached 14 kW and an accumulated run time of greater than 100 minutes without degradation of any system components.[17]

2017: In 2017, Lincoln Laboratory will demonstrate a 30 kW low SWaP 7 kg/kW fully packaged FCL.[18]  The same year, Lawrence Livermore plans to demonstrate a 30 kW average power DPALS with a beam quality of 1.5 times the diffraction limit and plans to complete a preliminary design for a 120 kW system.

2018: In 2018, MDA plans to improve the FCL design to a 50 kW system in a 5 kg/kW package.[19]  MDA will also conduct multiple laser studies on high power scaling and technology readiness of industrial laser concepts for use in a down select in 2019.[20]

2019: In FY 2019, MDA plans to demonstrate a 120 kW DPALS.  An MDA slide suggests that this may achieve a SWaP of about 3 kg/kW (see figure 2).  In 2019, MDA will select one of either the DPALS, the FCL or one of the other industrial concepts for further development as a boost-phase weapon.

Laser2

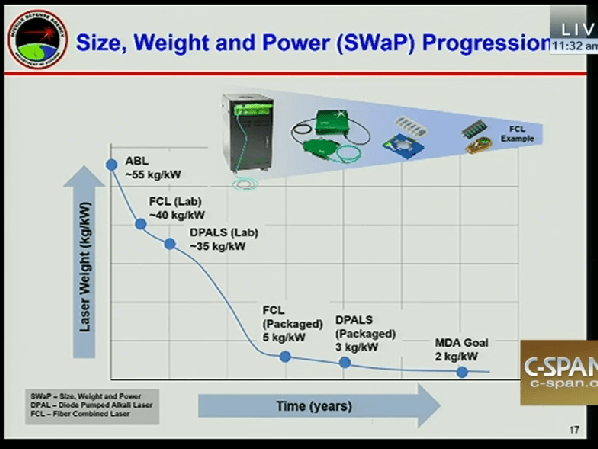

Figure 2.  MDA’s laser Size, Weight and Power plans.  Source:  Vice Admiral James Syring, “Ballistic Missile Defense System Update,” Presentation at the Center for Strategic and International Studies, January 20, 2016.  Video online at https://www.c-span.org/video/?403405-1/discussion-ballistic-missile-defense.

By 2021: MDA plans to conduct a low-powered flight demonstration by 2021 “to determine the feasibility of destroying enemy missiles in the boost phase of flight.”[21]

2022: By 2022 MDA plans to produce a prototype 300 kilowatt class laser using the technology selected in FY 2019.[22]

2025 time frame: In the 2025 time frame, MDA’s goal is “to integrate a compact, efficient, high power laser into a high altitude, long endurance aircraft capable of carrying that laser and destroying targets in the boost phase.”[23]

————————————————————————–
